a class that will hold a single binned histogram dataset and its properties for a PlotHistogram plot More...

#include <gtkmm-plplot/plotdatahistogrambinned.h>

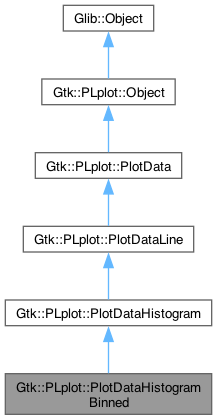

Inheritance diagram for Gtk::PLplot::PlotDataHistogramBinned:

[legend]

Public Member Functions
	PlotDataHistogramBinned (const std::vector< double > &data_x, const std::vector< double > &data_y, bool centred=false)

	PlotDataHistogramBinned (const std::valarray< double > &data_x, const std::valarray< double > &data_y, bool centred=false)

virtual	~PlotDataHistogramBinned ()

void	set_centred (bool centred)

bool	get_centred ()

virtual void	draw_plot_data (const Cairo::RefPtr< Cairo::Context > &cr, plstream *pls) override

virtual void	get_extremes (double &xmin, double &xmax, double &ymin, double &ymax) override

Public Member Functions inherited from Gtk::PLplot::PlotDataHistogram
virtual	~PlotDataHistogram ()

double	get_data_minimum ()

double	get_data_maximum ()

int	get_nbins ()

void	set_expand_bins (bool expand_bins)

bool	get_expand_bins ()

void	set_empty_bins (bool empty_bins)

bool	get_empty_bins ()

Public Member Functions inherited from Gtk::PLplot::PlotDataLine
virtual	~PlotDataLine ()

void	set_color (Gdk::RGBA color)

Gdk::RGBA	get_color ()

void	set_line_style (LineStyle line_style)

LineStyle	get_line_style ()

void	set_line_width (double line_width)

double	get_line_width ()

Public Member Functions inherited from Gtk::PLplot::PlotData
virtual	~PlotData ()

void	set_name (Glib::ustring name)

Glib::ustring	get_name ()

void	show ()

void	hide ()

bool	is_showing () const

sigc::signal< void(void)>	signal_changed ()

sigc::signal< void(void)>	signal_data_modified ()

Public Member Functions inherited from Gtk::PLplot::Object
virtual void	set_manage ()

Static Protected Member Functions
static double	get_new_datmin (std::vector< double > data_x, bool centred)
	static method to calculate the data minumum

static double	get_new_datmax (std::vector< double > data_x, bool centred)
	static method to calculate the data maximum

Protected Attributes
std::vector< double >	data_x
	bin X-values, must be monotonicly increasing!

std::vector< double >	data_y
	bin Y-values (heights)

bool	centred
	if `true`, yhe bin boundaries are to be midway between the `data_x` values. If the values in `data_x` are equally spaced, the values are the center values of the bins.

Protected Attributes inherited from Gtk::PLplot::PlotDataHistogram
double	datmin
	Left-hand edge of the lowest-valued bin.

double	datmax
	Right-hand edge of the highest-valued bin.

int	nbins
	Number of bins into which to divide the data.

bool	expand_bins
	When `false`, the outer bins are drawn with equal size as the ones inside.

bool	empty_bins
	When `false`, bins with zero height are not drawn (there is a gap for such bins).

Protected Attributes inherited from Gtk::PLplot::PlotDataLine
Gdk::RGBA	color
	The color the dataset will be drawn in.

LineStyle	line_style
	The linestyle that will be used for this dataset in the plot.

double	line_width
	The line width of the dataset. Default is 1.0.

Protected Attributes inherited from Gtk::PLplot::PlotData
sigc::signal< void(void)>	_signal_changed
	signal that gets emitted whenever any of the dataset proprties is changed.

sigc::signal< void(void)>	_signal_data_modified
	signal that gets emitted whenever the X- and Y-datasets have been modified.

Private Member Functions
	PlotDataHistogramBinned ()=delete
	no default constructor

PlotDataHistogramBinned &	operator= (const PlotDataHistogramBinned &)=delete
	no assignment operator

	PlotDataHistogramBinned (const PlotDataHistogramBinned &source)=delete
	no default copy constructor

Additional Inherited Members
Protected Member Functions inherited from Gtk::PLplot::PlotDataHistogram
	PlotDataHistogram (double datmin, double datmax, int nbins, bool expand_bins=true, bool empty_bins=true)

Protected Member Functions inherited from Gtk::PLplot::PlotDataLine
	PlotDataLine (Gdk::RGBA color, LineStyle line_style, double line_width)

Protected Member Functions inherited from Gtk::PLplot::PlotData
virtual void	on_changed ()

virtual void	on_data_modified ()

	PlotData ()

Protected Member Functions inherited from Gtk::PLplot::Object
	Object ()

Detailed Description

a class that will hold a single binned histogram dataset and its properties for a PlotHistogram plot

Instances of this class contain a single dataset for a PlotHistogram plot using binned data, along with a number of properties that will determine the appearance of the histogram. The constructors of this class allow to use either std::vector or std::valarray as sources of data, for added flexibility. Internally they are stored only as std::vector though. Important is that whenever a property is changed, signal_changed() is emitted, which will eventually be picked up by the canvas that will hold the plot. Several of the methods that are offered by this class are demonstrated in Example 12: Histograms

Constructor & Destructor Documentation

◆ PlotDataHistogramBinned() [1/4]

Gtk::PLplot::PlotDataHistogramBinned::PlotDataHistogramBinned ( )

privatedelete

no default constructor

◆ PlotDataHistogramBinned() [2/4]

Gtk::PLplot::PlotDataHistogramBinned::PlotDataHistogramBinned ( const PlotDataHistogramBinned & source )

privatedelete

no default copy constructor

◆ PlotDataHistogramBinned() [3/4]

Gtk::PLplot::PlotDataHistogramBinned::PlotDataHistogramBinned	(	const std::vector< double > &	data_x,
		const std::vector< double > &	data_y,
		bool	centred = `false`
	)

Constructor

This constructor initializes a new dataset for a PlotHistogram from binned data.

Parameters

data_x	the X-values of the bins, as std::vector
data_y	the Y-values of the bins, as std::vector
centred	if `true`, yhe bin boundaries are to be midway between the `data_x` values. If the values in `data_x` are equally spaced, the values are the center values of the bins.

Exceptions

Gtk::PLplot::Exception

◆ PlotDataHistogramBinned() [4/4]

Gtk::PLplot::PlotDataHistogramBinned::PlotDataHistogramBinned	(	const std::valarray< double > &	data_x,
		const std::valarray< double > &	data_y,
		bool	centred = `false`
	)

Constructor

This constructor initializes a new dataset for a PlotHistogram from binned data.

Parameters

data_x	the X-values of the bins, as std::valarray
data_y	the Y-values of the bins, as std::valarray
centred	if `true`, yhe bin boundaries are to be midway between the `data_x` values. If the values in `data_x` are equally spaced, the values are the center values of the bins.

Exceptions

Gtk::PLplot::Exception

◆ ~PlotDataHistogramBinned()

virtual Gtk::PLplot::PlotDataHistogramBinned::~PlotDataHistogramBinned ( )

virtual

Destructor

Member Function Documentation

◆ draw_plot_data()

virtual void Gtk::PLplot::PlotDataHistogramBinned::draw_plot_data	(	const Cairo::RefPtr< Cairo::Context > &	cr,
		plstream *	pls
	)

overridevirtual

Method to draw the dataset

This method is virtual allowing inheriting classes to implement their own method with the same signature.

Parameters

cr	the cairo context to draw to.
pls	the PLplot plstream object that will do the actual plotting on the Cairo context

Reimplemented from Gtk::PLplot::PlotData.

◆ get_centred()

bool Gtk::PLplot::PlotDataHistogramBinned::get_centred ( )

Get the manner in which the X-values should be interpreted

If true, yhe bin boundaries are to be midway between the data_x values. If the values in data_x are equally spaced, the values are the center values of the bins.

Returns: the current setting for X-values

◆ get_extremes()

virtual void Gtk::PLplot::PlotDataHistogramBinned::get_extremes	(	double &	xmin,
		double &	xmax,
		double &	ymin,
		double &	ymax
	)

overridevirtual

Get dataset extremes

Will be used in determining the box and its axes

Implements Gtk::PLplot::PlotDataHistogram.

◆ get_new_datmax()

static double Gtk::PLplot::PlotDataHistogramBinned::get_new_datmax	(	std::vector< double >	data_x,
		bool	centred
	)

staticprotected

static method to calculate the data maximum

◆ get_new_datmin()

static double Gtk::PLplot::PlotDataHistogramBinned::get_new_datmin	(	std::vector< double >	data_x,
		bool	centred
	)

staticprotected

static method to calculate the data minumum

◆ operator=()

PlotDataHistogramBinned & Gtk::PLplot::PlotDataHistogramBinned::operator= ( const PlotDataHistogramBinned & )

privatedelete

no assignment operator

◆ set_centred()

void Gtk::PLplot::PlotDataHistogramBinned::set_centred ( bool centred )

Set the manner in which the X-values should be interpreted

If true, yhe bin boundaries are to be midway between the data_x values. If the values in data_x are equally spaced, the values are the center values of the bins.

Parameters

centred new setting for X-values

Member Data Documentation

◆ centred

bool Gtk::PLplot::PlotDataHistogramBinned::centred

protected

if true, yhe bin boundaries are to be midway between the data_x values. If the values in data_x are equally spaced, the values are the center values of the bins.

◆ data_x

std::vector<double> Gtk::PLplot::PlotDataHistogramBinned::data_x

protected

bin X-values, must be monotonicly increasing!

◆ data_y

std::vector<double> Gtk::PLplot::PlotDataHistogramBinned::data_y

protected

bin Y-values (heights)
