a class that will hold a single unbinned histogram dataset and its properties for a PlotHistogram plot More...

#include <gtkmm-plplot/plotdatahistogramunbinned.h>

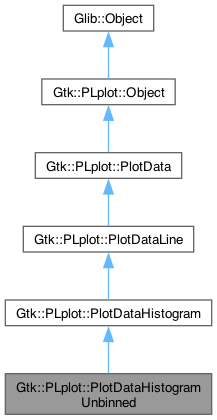

Inheritance diagram for Gtk::PLplot::PlotDataHistogramUnbinned:

[legend]

Public Member Functions
	PlotDataHistogramUnbinned (const std::vector< double > &data, double datmin, double datmax, int nbins)

	PlotDataHistogramUnbinned (const std::valarray< double > &data, double datmin, double datmax, int nbins)

virtual	~PlotDataHistogramUnbinned ()

virtual void	add_datapoint (double value)

void	set_data_minimum (double datmin)

void	set_data_maximum (double datmax)

void	set_nbins (int nbins)

bool	get_ignore_outliers ()

void	set_ignore_outliers (bool ignore_outliers)

virtual void	draw_plot_data (const Cairo::RefPtr< Cairo::Context > &cr, plstream *pls) override

virtual void	get_extremes (double &xmin, double &xmax, double &ymin, double &ymax) override

Public Member Functions inherited from Gtk::PLplot::PlotDataHistogram
virtual	~PlotDataHistogram ()

double	get_data_minimum ()

double	get_data_maximum ()

int	get_nbins ()

void	set_expand_bins (bool expand_bins)

bool	get_expand_bins ()

void	set_empty_bins (bool empty_bins)

bool	get_empty_bins ()

Public Member Functions inherited from Gtk::PLplot::PlotDataLine
virtual	~PlotDataLine ()

void	set_color (Gdk::RGBA color)

Gdk::RGBA	get_color ()

void	set_line_style (LineStyle line_style)

LineStyle	get_line_style ()

void	set_line_width (double line_width)

double	get_line_width ()

Public Member Functions inherited from Gtk::PLplot::PlotData
virtual	~PlotData ()

void	set_name (Glib::ustring name)

Glib::ustring	get_name ()

void	show ()

void	hide ()

bool	is_showing () const

sigc::signal< void(void)>	signal_changed ()

sigc::signal< void(void)>	signal_data_modified ()

Public Member Functions inherited from Gtk::PLplot::Object
virtual void	set_manage ()

Protected Member Functions
void	rebin ()
	rebin the data

Protected Member Functions inherited from Gtk::PLplot::PlotDataHistogram
	PlotDataHistogram (double datmin, double datmax, int nbins, bool expand_bins=true, bool empty_bins=true)

Protected Member Functions inherited from Gtk::PLplot::PlotDataLine
	PlotDataLine (Gdk::RGBA color, LineStyle line_style, double line_width)

Protected Member Functions inherited from Gtk::PLplot::PlotData
virtual void	on_changed ()

virtual void	on_data_modified ()

	PlotData ()

Protected Member Functions inherited from Gtk::PLplot::Object
	Object ()

Protected Attributes
std::vector< double >	data
	unbinned data

bool	ignore_outliers
	flag that will determine what happens to outliers, i.e. data outside of datmin and datmax

Protected Attributes inherited from Gtk::PLplot::PlotDataHistogram
double	datmin
	Left-hand edge of the lowest-valued bin.

double	datmax
	Right-hand edge of the highest-valued bin.

int	nbins
	Number of bins into which to divide the data.

bool	expand_bins
	When `false`, the outer bins are drawn with equal size as the ones inside.

bool	empty_bins
	When `false`, bins with zero height are not drawn (there is a gap for such bins).

Protected Attributes inherited from Gtk::PLplot::PlotDataLine
Gdk::RGBA	color
	The color the dataset will be drawn in.

LineStyle	line_style
	The linestyle that will be used for this dataset in the plot.

double	line_width
	The line width of the dataset. Default is 1.0.

Protected Attributes inherited from Gtk::PLplot::PlotData
sigc::signal< void(void)>	_signal_changed
	signal that gets emitted whenever any of the dataset proprties is changed.

sigc::signal< void(void)>	_signal_data_modified
	signal that gets emitted whenever the X- and Y-datasets have been modified.

Private Member Functions
	PlotDataHistogramUnbinned ()=delete
	no default constructor

PlotDataHistogramUnbinned &	operator= (const PlotDataHistogramUnbinned &)=delete
	no assignment operator

	PlotDataHistogramUnbinned (const PlotDataHistogramUnbinned &source)=delete
	no default copy constructor;

Private Attributes
double *	x
	the X-values of the bins

double *	y
	the Y-values (heights) of the bins

Detailed Description

a class that will hold a single unbinned histogram dataset and its properties for a PlotHistogram plot

Instances of this class contain a single dataset for a PlotHistogram plot using unbinned data, along with a number of properties that will determine the appearance of the histogram. The constructors of this class allow to use either std::vector or std::valarray as sources of data, for added flexibility. Internally they are stored only as std::vector though. Important is that whenever a property is changed, signal_changed() is emitted, which will eventually be picked up by the canvas that will hold the plot. Several of the methods that are offered by this class are demonstrated in Example 12: Histograms

Constructor & Destructor Documentation

◆ PlotDataHistogramUnbinned() [1/4]

Gtk::PLplot::PlotDataHistogramUnbinned::PlotDataHistogramUnbinned ( )

privatedelete

no default constructor

◆ PlotDataHistogramUnbinned() [2/4]

Gtk::PLplot::PlotDataHistogramUnbinned::PlotDataHistogramUnbinned ( const PlotDataHistogramUnbinned & source )

privatedelete

no default copy constructor;

◆ PlotDataHistogramUnbinned() [3/4]

Gtk::PLplot::PlotDataHistogramUnbinned::PlotDataHistogramUnbinned	(	const std::vector< double > &	data,
		double	datmin,
		double	datmax,
		int	nbins
	)

Constructor

This constructor initializes a new dataset for a PlotHistogram from unbinned data.

Parameters

data	the unbinned data, as std::vector
datmin	left-hand edge of the lowest-valued bin
datmax	right-hand edge of the highest-valued bin
nbins	number of bins into which to divide the data (minimum = 3)

Exceptions

Gtk::PLplot::Exception

◆ PlotDataHistogramUnbinned() [4/4]

Gtk::PLplot::PlotDataHistogramUnbinned::PlotDataHistogramUnbinned	(	const std::valarray< double > &	data,
		double	datmin,
		double	datmax,
		int	nbins
	)

Constructor

This constructor initializes a new dataset for a PlotHistogram from unbinned data.

Parameters

data	the unbinned data, as std::valarray
datmin	left-hand edge of the lowest-valued bin
datmax	right-hand edge of the highest-valued bin
nbins	number of bins into which to divide the data (minimum = 3)

Exceptions

Gtk::PLplot::Exception

◆ ~PlotDataHistogramUnbinned()

virtual Gtk::PLplot::PlotDataHistogramUnbinned::~PlotDataHistogramUnbinned ( )

virtual

Destructor

Member Function Documentation

◆ add_datapoint()

virtual void Gtk::PLplot::PlotDataHistogramUnbinned::add_datapoint ( double value )

virtual

Add a single datapoint to the unbinned data

This will lead to the bins being recalculated, which will be reflected in the plot being updated.

Parameters

value a new value to add to the unbinned data

◆ draw_plot_data()

virtual void Gtk::PLplot::PlotDataHistogramUnbinned::draw_plot_data	(	const Cairo::RefPtr< Cairo::Context > &	cr,
		plstream *	pls
	)

overridevirtual

Method to draw the dataset

This method is virtual allowing inheriting classes to implement their own method with the same signature.

Parameters

cr	the cairo context to draw to.
pls	the PLplot plstream object that will do the actual plotting on the Cairo context

Reimplemented from Gtk::PLplot::PlotData.

◆ get_extremes()

virtual void Gtk::PLplot::PlotDataHistogramUnbinned::get_extremes	(	double &	xmin,
		double &	xmax,
		double &	ymin,
		double &	ymax
	)

overridevirtual

Get dataset extremes

Will be used in determining the box and its axes

Implements Gtk::PLplot::PlotDataHistogram.

◆ get_ignore_outliers()

bool Gtk::PLplot::PlotDataHistogramUnbinned::get_ignore_outliers ( )

Get whether outliers should be ignored or added to the lowest or highest-valued bins.

Returns: the requested value

◆ operator=()

PlotDataHistogramUnbinned & Gtk::PLplot::PlotDataHistogramUnbinned::operator= ( const PlotDataHistogramUnbinned & )

privatedelete

no assignment operator

◆ rebin()

void Gtk::PLplot::PlotDataHistogramUnbinned::rebin ( )

protected

rebin the data

◆ set_data_maximum()

void Gtk::PLplot::PlotDataHistogramUnbinned::set_data_maximum ( double datmax )

Sets the right-hand edge of the highest-valued bin

This value must be more than the left-hand edge of the lowest-valued bin (obtained using get_data_minimum())

Parameters

datmax the new value

Exceptions

Gtk::PLplot::Exception

◆ set_data_minimum()

void Gtk::PLplot::PlotDataHistogramUnbinned::set_data_minimum ( double datmin )

Sets the left-hand edge of the lowest-valued bin

This value must be less than the right-hand edge of the highest-valued bin (obtained using get_data_maximum())

Parameters

datmin the new value

Exceptions

Gtk::PLplot::Exception

◆ set_ignore_outliers()

void Gtk::PLplot::PlotDataHistogramUnbinned::set_ignore_outliers ( bool ignore_outliers )

Sets whether outliers should be ignored or added to the lowest or highest-valued bins.

Parameters

ignore_outliers the new value

◆ set_nbins()

void Gtk::PLplot::PlotDataHistogramUnbinned::set_nbins ( int nbins )

Sets the number of histogram bins

This value must be greater than or equal to 3

Parameters

nbins the new value

Exceptions

Gtk::PLplot::Exception

Member Data Documentation

◆ data

std::vector<double> Gtk::PLplot::PlotDataHistogramUnbinned::data

protected

unbinned data

◆ ignore_outliers

bool Gtk::PLplot::PlotDataHistogramUnbinned::ignore_outliers

protected

flag that will determine what happens to outliers, i.e. data outside of datmin and datmax

◆ x

double* Gtk::PLplot::PlotDataHistogramUnbinned::x

private

the X-values of the bins

◆ y

double* Gtk::PLplot::PlotDataHistogramUnbinned::y

private

the Y-values (heights) of the bins
