Gtk::PLplot::PlotObject2DLine Class Reference

Line object for 2D plots. More...

#include <gtkmm-plplot/plotobject2dline.h>

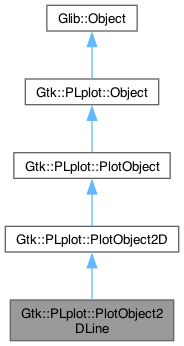

Inheritance diagram for Gtk::PLplot::PlotObject2DLine:

Public Member Functions
	PlotObject2DLine (double coord_x_begin, double coord_y_begin, double coord_x_end, double coord_y_end, Gdk::RGBA color=Gdk::RGBA("black"), LineStyle line_style=LineStyle::CONTINUOUS, double line_width=1.0)
	PlotObject2DLine (Gtk::Orientation orientation, double offset, Gdk::RGBA color=Gdk::RGBA("black"), LineStyle line_style=LineStyle::CONTINUOUS, double line_width=1.0)
virtual	~PlotObject2DLine ()
void	set_line_style (LineStyle line_style)
LineStyle	get_line_style ()
void	set_line_width (double line_width)
double	get_line_width ()
virtual bool	is_logarithmic_x_compatible () override
virtual bool	is_logarithmic_y_compatible () override
virtual void	draw_plot_object (const Cairo::RefPtr< Cairo::Context > &cr, plstream *pls, PlotObjectAuxData &data) override
Public Member Functions inherited from Gtk::PLplot::PlotObject2D
virtual	~PlotObject2D ()
void	set_color (Gdk::RGBA color)
Gdk::RGBA	get_color ()
Public Member Functions inherited from Gtk::PLplot::PlotObject
virtual	~PlotObject ()
void	show ()
void	hide ()
bool	is_showing () const
sigc::signal< void(void)>	signal_changed ()
Public Member Functions inherited from Gtk::PLplot::Object
virtual void	set_manage ()

Protected Attributes
LineStyle	line_style
	The linestyle that will be used to draw this line object in the plot.
double	line_width
	The line width of the line object. Default is 1.0.
double	coords_begin [2]
	coordinates of starting point (WORLD coordinates!)
double	coords_end [2]
	coordinates of end point (WORLD coordinates!)
Protected Attributes inherited from Gtk::PLplot::PlotObject2D
Gdk::RGBA	color
	The color the dataset will be drawn in.
Protected Attributes inherited from Gtk::PLplot::PlotObject
sigc::signal< void(void)>	_signal_changed
	signal that gets emitted whenever any of the plot object properties is changed.

Private Member Functions
	PlotObject2DLine ()=delete
	no default constructor
PlotObject2DLine &	operator= (const PlotObject2DLine &)=delete
	no assignment operator
	PlotObject2DLine (const PlotObject2DLine &source)=delete
	no default copy constructor;

Additional Inherited Members
Protected Member Functions inherited from Gtk::PLplot::PlotObject2D
	PlotObject2D (Gdk::RGBA color)
Protected Member Functions inherited from Gtk::PLplot::PlotObject
virtual void	on_changed ()
	PlotObject ()
Protected Member Functions inherited from Gtk::PLplot::Object
	Object ()

Detailed Description

Line object for 2D plots.

Constructor & Destructor Documentation

PlotObject2DLine() [1/4]

Gtk::PLplot::PlotObject2DLine::PlotObject2DLine ( )

privatedelete

no default constructor

PlotObject2DLine() [2/4]

Gtk::PLplot::PlotObject2DLine::PlotObject2DLine ( const PlotObject2DLine &  source )

privatedelete

no default copy constructor;

PlotObject2DLine() [3/4]

Gtk::PLplot::PlotObject2DLine::PlotObject2DLine	(	double	coord_x_begin,
		double	coord_y_begin,
		double	coord_x_end,
		double	coord_y_end,
		Gdk::RGBA	color = Gdk::RGBA("black"),
		LineStyle	line_style = LineStyle::CONTINUOUS,
		double	line_width = 1.0
	)

Constructor

This constructor initializes a new PlotObject2DLine instance, by setting the properties that will determine its appearance when rendered onto a plot

Parameters

coord_x_begin	X coordinate of the starting point
coord_y_begin	Y coordinate of the starting point
coord_x_end	X coordinate of the end point
coord_y_end	Y coordinate of the end point
color	the line color
line_style	the line style
line_width	the line width

Exceptions

Gtk::PLplot::Exception

PlotObject2DLine() [4/4]

Gtk::PLplot::PlotObject2DLine::PlotObject2DLine	(	Gtk::Orientation	orientation,
		double	offset,
		Gdk::RGBA	color = Gdk::RGBA("black"),
		LineStyle	line_style = LineStyle::CONTINUOUS,
		double	line_width = 1.0
	)

Constructor

This constructor initializes a new PlotObject2DLine instance, with either a horizontal or vertical orientation, by setting the properties that will determine its appearance when rendered onto a plot

Parameters

orientation	Must be either Gtk::Orientation::HORIZONTAL or Gtk::Orientation::VERTICAL
offset	For horizontal lines, the vertical offset and vice-versa for vertical lines
color	the line color
line_style	the line style
line_width	the line width

Exceptions

Gtk::PLplot::Exception

~PlotObject2DLine()

virtual Gtk::PLplot::PlotObject2DLine::~PlotObject2DLine ( )

virtual

Destructor

Member Function Documentation

draw_plot_object()

virtual void Gtk::PLplot::PlotObject2DLine::draw_plot_object ( const Cairo::RefPtr< Cairo::Context > &  cr, plstream *  pls, PlotObjectAuxData &  data  )

overridevirtual

Method to draw the object

This method is virtual allowing inheriting classes to implement their own method with the same signature.

Parameters

cr	the cairo context to draw to.
pls	the PLplot plstream object that will do the actual plotting on the Cairo context
data	additional data sent from the Plot to influence drawing

Implements Gtk::PLplot::PlotObject.

get_line_style()

LineStyle Gtk::PLplot::PlotObject2DLine::get_line_style

(

)

Get the current line style

Returns

the current line style

get_line_width()

double Gtk::PLplot::PlotObject2DLine::get_line_width

(

)

Get the current line width

Returns

the current line width

is_logarithmic_x_compatible()

virtual bool Gtk::PLplot::PlotObject2DLine::is_logarithmic_x_compatible ( )

overridevirtual

Check if the object can be used in a plot with a logarithmic X-axis

Returns

true if compatible, false if not

Implements Gtk::PLplot::PlotObject2D.

is_logarithmic_y_compatible()

virtual bool Gtk::PLplot::PlotObject2DLine::is_logarithmic_y_compatible ( )

overridevirtual

Check if the object can be used in a plot with a logarithmic Y-axis

Returns

true if compatible, false if not

Implements Gtk::PLplot::PlotObject2D.

operator=()

PlotObject2DLine & Gtk::PLplot::PlotObject2DLine::operator= ( const PlotObject2DLine &  )

privatedelete

no assignment operator

set_line_style()

void Gtk::PLplot::PlotObject2DLine::set_line_style

(

LineStyle

line_style

)

Changes the line style

Parameters

line_style

The new line style

set_line_width()

void Gtk::PLplot::PlotObject2DLine::set_line_width

(

double

line_width

)

Changes the line width

Parameters

line_width

The new line width

Exceptions

Gtk::PLplot::Exception

Member Data Documentation

coords_begin

double Gtk::PLplot::PlotObject2DLine::coords_begin[2]

protected

coordinates of starting point (WORLD coordinates!)

coords_end

double Gtk::PLplot::PlotObject2DLine::coords_end[2]

protected

coordinates of end point (WORLD coordinates!)

line_style

LineStyle Gtk::PLplot::PlotObject2DLine::line_style

protected

The linestyle that will be used to draw this line object in the plot.

line_width

double Gtk::PLplot::PlotObject2DLine::line_width

protected

The line width of the line object. Default is 1.0.
