Text object for 2D plots. More...

#include <gtkmm-plplot/plotobject2dtext.h>

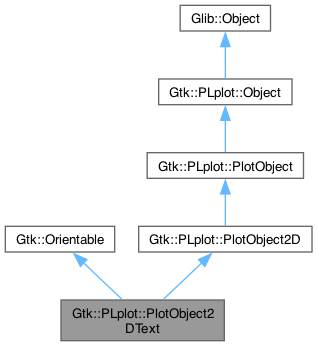

Inheritance diagram for Gtk::PLplot::PlotObject2DText:

[legend]

Public Member Functions
	PlotObject2DText (Glib::ustring text, double coord_x, double coord_y, Gdk::RGBA color=Gdk::RGBA("black"))

virtual	~PlotObject2DText ()

double	get_justification ()

void	set_justification (double justification)

Glib::ustring	get_text ()

void	set_text (Glib::ustring text)

void	get_coordinates (double &coord_x, double &coord_y)

void	set_coordinates (double coord_x, double coord_y)

double	get_scale_factor ()

void	set_scale_factor (double scale_factor)

virtual bool	is_logarithmic_x_compatible () override

virtual bool	is_logarithmic_y_compatible () override

virtual void	draw_plot_object (const Cairo::RefPtr< Cairo::Context > &cr, plstream *pls, PlotObjectAuxData &data) override

Public Member Functions inherited from Gtk::PLplot::PlotObject2D
virtual	~PlotObject2D ()

void	set_color (Gdk::RGBA color)

Gdk::RGBA	get_color ()

Public Member Functions inherited from Gtk::PLplot::PlotObject
virtual	~PlotObject ()

void	show ()

void	hide ()

bool	is_showing () const

sigc::signal< void(void)>	signal_changed ()

Public Member Functions inherited from Gtk::PLplot::Object
virtual void	set_manage ()

Protected Attributes
double	justification
	text justification. Must be [0,1]

Glib::ustring	text
	text that should be plotted

double	coords [2]
	text coordinates

double	scale_factor
	text scale factor

Protected Attributes inherited from Gtk::PLplot::PlotObject2D
Gdk::RGBA	color
	The color the dataset will be drawn in.

Protected Attributes inherited from Gtk::PLplot::PlotObject
sigc::signal< void(void)>	_signal_changed
	signal that gets emitted whenever any of the plot object properties is changed.

Private Member Functions
	PlotObject2DText ()=delete
	no default constructor

PlotObject2DText &	operator= (const PlotObject2DText &)=delete
	no assignment operator

	PlotObject2DText (const PlotObject2DText &source)=delete
	no default copy constructor;

Additional Inherited Members
Protected Member Functions inherited from Gtk::PLplot::PlotObject2D
	PlotObject2D (Gdk::RGBA color)

Protected Member Functions inherited from Gtk::PLplot::PlotObject
virtual void	on_changed ()

	PlotObject ()

Protected Member Functions inherited from Gtk::PLplot::Object
	Object ()

Detailed Description

Text object for 2D plots.

This object is used in Example 2: Logarithmic axes and box styles

Constructor & Destructor Documentation

◆ PlotObject2DText() [1/3]

Gtk::PLplot::PlotObject2DText::PlotObject2DText ( )

privatedelete

no default constructor

◆ PlotObject2DText() [2/3]

Gtk::PLplot::PlotObject2DText::PlotObject2DText ( const PlotObject2DText & source )

privatedelete

no default copy constructor;

◆ PlotObject2DText() [3/3]

Gtk::PLplot::PlotObject2DText::PlotObject2DText	(	Glib::ustring	text,
		double	coord_x,
		double	coord_y,
		Gdk::RGBA	color = `Gdk::RGBA("black")`
	)

Constructor

This constructor initializes a new PlotObject2DText instance, defined by its contents (text) as well as its position and color. More properties can be set using the other methods that are offered by this class.

Parameters

text	What will be printed on the plot
coord_x	X-coordinate of the text
coord_y	Y-coordinate of the text
color	The color text color

◆ ~PlotObject2DText()

virtual Gtk::PLplot::PlotObject2DText::~PlotObject2DText ( )

virtual

Destructor

Member Function Documentation

◆ draw_plot_object()

virtual void Gtk::PLplot::PlotObject2DText::draw_plot_object	(	const Cairo::RefPtr< Cairo::Context > &	cr,
		plstream *	pls,
		PlotObjectAuxData &	data
	)

overridevirtual

Method to draw the object

This method is virtual allowing inheriting classes to implement their own method with the same signature.

Parameters

cr	the cairo context to draw to.
pls	the PLplot plstream object that will do the actual plotting on the Cairo context
data	additional data sent from the Plot to influence drawing

Implements Gtk::PLplot::PlotObject.

◆ get_coordinates()

void Gtk::PLplot::PlotObject2DText::get_coordinates	(	double &	coord_x,
		double &	coord_y
	)

Get current text coordinates

Parameters

coord_x	X-coordinate
coord_y	Y-coordinate

◆ get_justification()

double Gtk::PLplot::PlotObject2DText::get_justification ( )

Get current text justification

0.0 corresponds to left justified, 1.0 to right justified. Only values in [0.0, 1.0] are valid

Returns: Current text justification

◆ get_scale_factor()

double Gtk::PLplot::PlotObject2DText::get_scale_factor ( )

Get current text scale factor

Use this parameter to get the current text font size

Returns: Text scale factor

◆ get_text()

Glib::ustring Gtk::PLplot::PlotObject2DText::get_text ( )

Get current text

Returns: Current text

◆ is_logarithmic_x_compatible()

virtual bool Gtk::PLplot::PlotObject2DText::is_logarithmic_x_compatible ( )

overridevirtual

Check if the object can be used in a plot with a logarithmic X-axis

Returns: true if compatible, false if not

Implements Gtk::PLplot::PlotObject2D.

◆ is_logarithmic_y_compatible()

virtual bool Gtk::PLplot::PlotObject2DText::is_logarithmic_y_compatible ( )

overridevirtual

Check if the object can be used in a plot with a logarithmic Y-axis

Returns: true if compatible, false if not

Implements Gtk::PLplot::PlotObject2D.

◆ operator=()

PlotObject2DText & Gtk::PLplot::PlotObject2DText::operator= ( const PlotObject2DText & )

privatedelete

no assignment operator

◆ set_coordinates()

void Gtk::PLplot::PlotObject2DText::set_coordinates	(	double	coord_x,
		double	coord_y
	)

Set new text coordinates

Parameters

coord_x	X-coordinate
coord_y	Y-coordinate

◆ set_justification()

void Gtk::PLplot::PlotObject2DText::set_justification ( double justification )

Set text justification

0.0 corresponds to left justified, 1.0 to right justified. Only values in [0.0, 1.0] are valid

Parameters

justification New text justification

Exceptions

Gtk::PLplot::Exception

◆ set_scale_factor()

void Gtk::PLplot::PlotObject2DText::set_scale_factor ( double scale_factor )

Set text scale factor

Use this parameter to increase or decrease the text font size

Parameters

scale_factor New text scale factor

◆ set_text()

void Gtk::PLplot::PlotObject2DText::set_text ( Glib::ustring text )

Set new text

Parameters

text New text

Member Data Documentation

◆ coords

double Gtk::PLplot::PlotObject2DText::coords[2]

protected

text coordinates

◆ justification

double Gtk::PLplot::PlotObject2DText::justification

protected

text justification. Must be [0,1]

◆ scale_factor

double Gtk::PLplot::PlotObject2DText::scale_factor

protected

text scale factor

◆ text

Glib::ustring Gtk::PLplot::PlotObject2DText::text

protected

text that should be plotted
